REVIEW OF THE ASUS MATRIX HD7970 PLATINUM 3GB
Good day everyone! First of all, I would like to thank ASUS and also Sanko for giving me this opportunity to make a review for such a wonderful card![rclxm9.gif]()
. Besides, this is also my first time making a review for hardware so if any mistake arised, please forgive me . ![tongue.gif]()
As we known, many manufacturers had release their own HD7970 cards since AMD released their HD7970 in the market. But recently, ASUS had released the most powerful HD7970 graphic card between all of the other competitors which is MATRIX HD7970 PLATINUM 3GB. The part code is MATRIX-HD7970-P-3GD5! This card has the AMD Radeon HD 7970 'Tahiti' GPU core clocked at 1100 MHz and the 3GB of GDDR5 RAM is clocked at 1650 MHz (6600 MHz effective)，it beats the MSI 7970 Lightning completely. By the way, ASUS had threw out the reference design of HD7970 from the window and made a really big change on this card. Moreover, this card had three slots with massive cooling capacity and keeps the temperature of this card below 70 degree celcius. How cool it is huh?![shocking.gif]()
Your room won't be getting hot and hotter if you own this card ![rclxms.gif]()
.
There's more though, the HD7970 Matrix Platinum comes with 2x DVI outputs as well as with 4x DisplayPort connectors. This design allows for up to six displays to be connected in Eyefinity mode.![rolleyes.gif]()
This best requires 2x8 power connector but with very low power consumption.
Let's stop the chit chat and look forward into the UNBOXING photos!![icon_rolleyes.gif]()

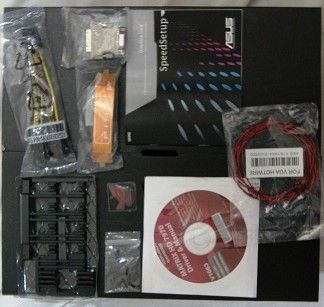

The accesories in the box
Driver CD + Documentation
CrossFire Bridge
DVI Adapter
PCIE Power Cable
LN2 MOSFET Heatsink
ROG Badge
3x VGA Hotwire Cable
![user posted image]()
The front view of the box
![user posted image]()
The rear view of the box
![user posted image]()

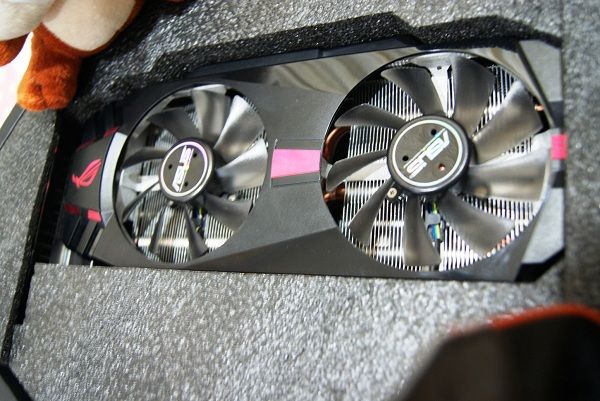

Look what i've found inside the box!!![shakehead.gif]()
Top view of this beast!
![user posted image]()

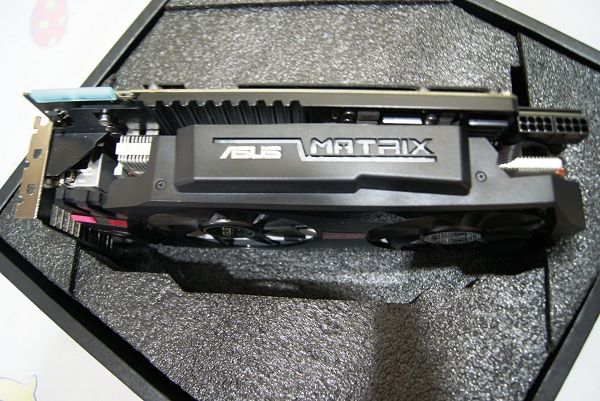

THE MOST INTERESTING PART OF THIS CARD!! The side panel of this card, with a word 'MATRIX' engraved. The 'MATRIX' got 5 different color of LED indicators which separate the level of this beast with each colour. Will explain about it later! Stay tuned!![cool.gif]()
![user posted image]()
Three slotted as we mentioned just now. It's really huge and occupy lot of spaces. BUT, who cares? Since it comes with 2x DVI port and 4x Display port and huge heatsink to perform better cooling capacity!
![user posted image]()

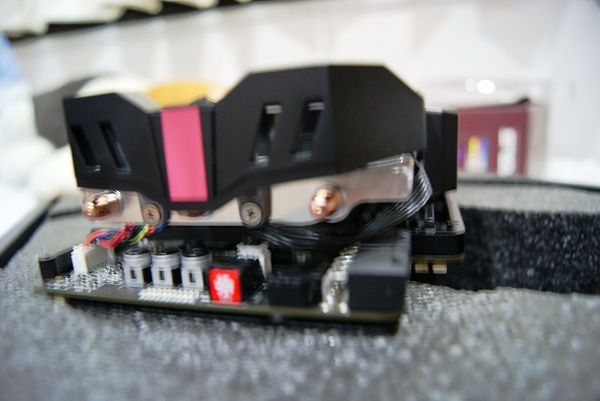

Look at this awesome features. A little red button which can boost the 2x 100mm fans on the shroud to 100% speed once you pressed it. Besides, there you can see 3 circle black button with +, - and safe mode. The + and - buttons allow you to adjust the voltage of the card manually while safe mode is to prevent you to short circuit the card. Of course it's not gonna help if you drooled on the card![sweat.gif]()
![user posted image]()

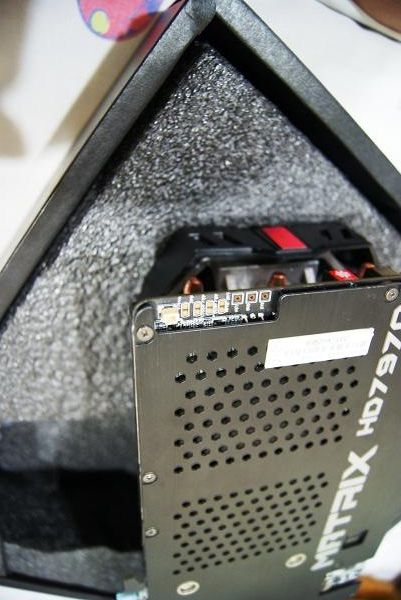

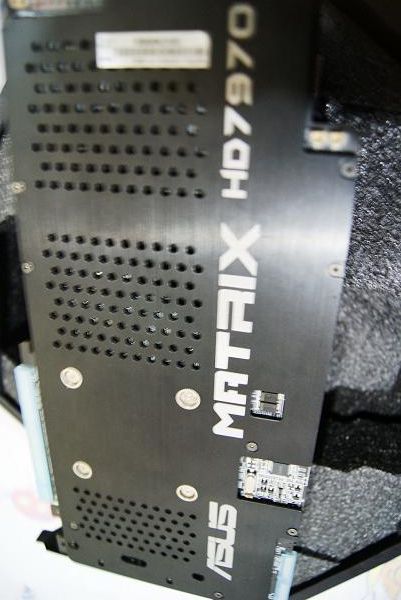

This is the backplate of Matrix. Devastating huh?![wink.gif]()
Fine Polished!
![user posted image]()
Even more, this card featured VGA hotwire function which allow you to suppling more vcore / memcore etc..
![user posted image]()
__________________________________________________________________________________________________________________________________________________________________________________________
Let's continue to the benchmarking section!
ASUS Matrix HD7970 Platinum 3GB is tested in rig with specifications of:
Processor: AMD X6 1090T
Motherboard: ASUS Crosshair V Formula
Memory/ RAM: Crucial Ballistix Tracer 1600mhz C8 2x4gb dual channel
PSU: Gigabyte Odin Pro 800W 80+
Cooling Solution: XSPC RS360 kit

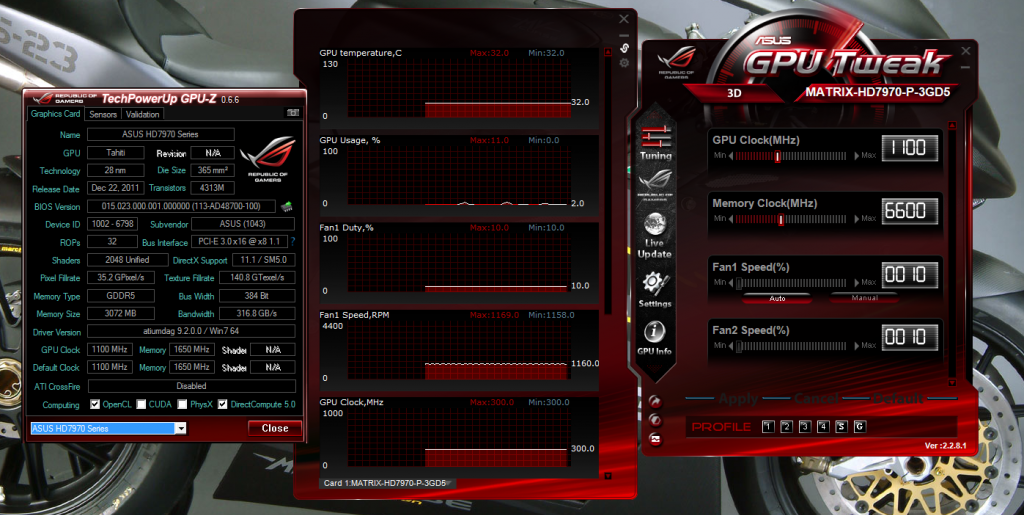

Now, we're going to test the ASUS Matrix HD7970 Platinum with the 3D MARK 11 software. We will start with the factory settings first. Refer to the image below! This test will carry in an air-conditioned room.
![user posted image]()
